一、 Product Overview

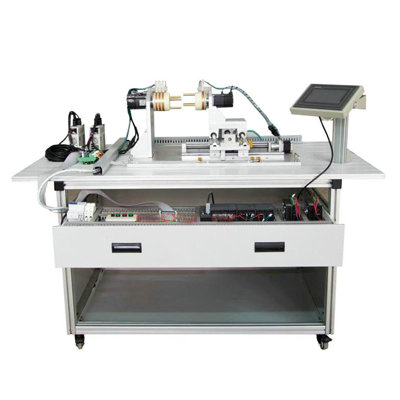

The GX-JD10H-1 servo/stepper/variable frequency control comprehensive training platform is a practical teaching equipment that integrates technologies such as two axis positioning model, PLC, stepper motion control system, servo motion control system, human-machine interface, sensor, etc. It is suitable for practical teaching, course design, and graduation design of majors such as mechatronics, electrical engineering, automation, etc.
二、 Technical parameters
1) Input power supply: three-phase five wire~380V ± 10% 50Hz;
2) Working environment: temperature -10 ℃~+40 ℃, relative humidity<85% (25 ℃), altitude<4000m;
3) Device capacity: ＜ 1.0kVA;
4) Overall size: 1200mm × 800mm × 1100mm。
三、 Practical training projects
Task 1: Use of stepper motors and drivers
Selection of stepper motors and drivers
Wiring of stepper motor and driver control circuit
Setting of stepper motor driver
Programming of PLC controlled stepper motor
Step motor operation and debugging
Task 2: Use of servo motors and drivers
Selection of servo motor driver and servo motor
Servo motor driver and servo motor wiring
Parameter setting of servo motor driver
Control the operation of the servo motor through the operation panel
Using servo software to control the operation of servo motors
Task 3: Use of touch screen
Installation of touch screen
Touch screen power supply circuit connection
Touch screen configuration interface production
Touch screen and PLC communication parameter settings
Task 4: Installation of electrical control circuits and PLC programming
PLC ? stepper motor driver and servo motor driver electrical circuit connection
Programming of Two Axis Positioning Control Program for PLC ? Stepper Motor Driver
Programming of Two Axis Positioning Control Program for PLC ? Servo Motor Driver
Programming of Two Axis Positioning and Servo Motor Spindle Alignment Control Program for Stepper Motor Based on PLC
Programming of Spindle Alignment Control Program Based on Servo Absolute Position System
Programming of Two Axis High Speed Synchronous Operation Based on Touch Screen Control
Task 5: Frequency converter debugging and control
Setting and operation of frequency converter functional parameters
Frequency converter alarm and protection function
External terminal jog control
Frequency converter control motor forward and reverse rotation
Multi stage speed selection variable frequency speed regulation
Frequency converter stepless speed regulation
Variable frequency speed regulation based on external analog quantity (voltage/current) control method
Instantaneous power outage start control
PID variable frequency speed control
PLC controls the forward and reverse rotation of the motor at the external terminals of the frequency converter
PLC controlled motor running time control for external terminals of frequency converters
Multi stage speed regulation based on PLC digital control method
Variable frequency open loop speed control based on PLC digital quantity control
Open loop speed regulation of frequency converter based on PLC communication mode
