一、Product Overview

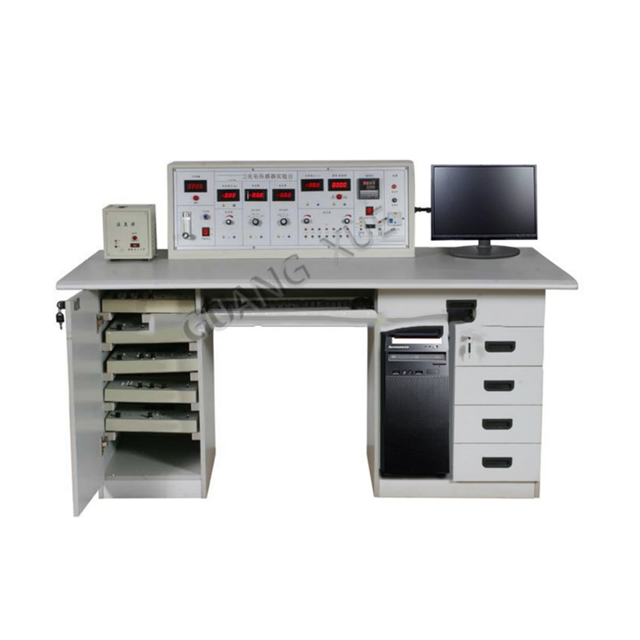

The equipment is developed and designed according to the course requirements of optoelectronics. The equipment adopts a modular structure. Each module corresponds to a corresponding sensor, and different modules can be selected according to needs. In addition to the common DC power supply, the equipment is also equipped with a variety of display instruments, especially the quantitative measurement instrument, Optical power meter, illuminometer, digital display microammeter, etc. required for photoelectric experiments.

二、Technical parameters

1) Input power supply: AC220V ± 5% (single-phase three wire) 50Hz;

2) Rated power: ≤ 1KW;

3) Vibration source: 1HZ-30HZ (adjustable);

4) Rotation source: 0-2400 rpm (adjustable);

5) Heating source: ＜ 150 ℃ (adjustable);

6) Environmental temperature: -10 ℃~40 ℃;

7) Relative humidity: ≤ 85%;

8) Boundary dimension: 1600 × eight hundred × 750 mm。.

三、Practical training projects

1. Optical power experiment

2. Illumination experiment

3. Light dispersion experiment

4. Monochromaticity experiment of laser

5. Dark current and bright current experiments of photosensitive devices

6. Dark resistance and bright resistance experiment of photoresistor

7. Spectral characteristic experiment of photoresistor

8. Light characteristic experiment of photoresistor

9. photoresistor volt ampere characteristic experiment

10. Experiment on P-I Characteristics of Light Emitting Diodes

11. Spectral characteristics experiment of photodiodes

12. Photosensitive diode illumination characteristics experiment

13. Spectral characteristics experiment of photosensitive transistor

14. Photosensitive transistor illumination characteristics experiment

15. Volt ampere characteristics experiment of photosensitive transistor

16. Optical Switch Experiment

17. Photocell spectral characteristics experiment

18. Photocell illumination characteristics experiment

19. Infrared reflective switch experiment

20. Principle experiment of infrared pyroelectric sensor

21. Application experiment of infrared pyroelectric detector

22. Pulse Light Modulation and Demodulation Experiment

23. Acousto optic modulation and demodulation experiment

24. PSD sensor experiment

25. Fiber optic displacement sensor experiment

26. Fiber optic temperature sensor experiment

27. Fiber optic pressure sensor experiment

28. Photoelectric speed sensor speed measurement
