一、 Product Overview

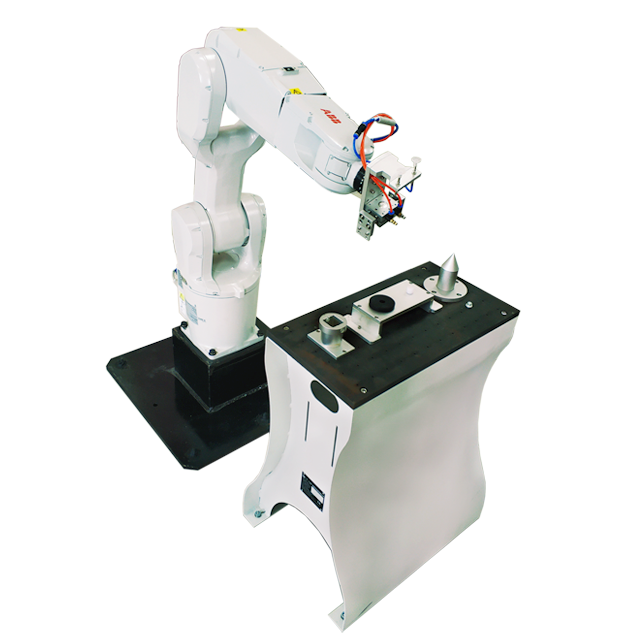

The GX-R05 industrial robot basic skills workstation equipment system conforms to the "four positioning": the positioning of vocational skills competition; The positioning of skill training and appraisal; The positioning of integrated teaching reform; Conforming to the positioning of a high skilled talent training base; This equipment belongs to the basic skills training application equipment, centered around a 6-axis robot, and is equipped with different task carriers according to task requirements to cultivate students' understanding of basic robot knowledge.
二、Technical parameters
1) Working power supply: single-phase three wire 220V ± 5% 50HZ;
2) Safety protection: leakage protection, overcurrent protection, short circuit protection;
3) Rated power: ≤ 2KW;
4) Environmental temperature: -10~50 ℃;
5) Relative temperature: ≤ 85%;
6) Boundary dimension: L2300mm × W2800mm × H1200mm。
三、Practical training projects
1. Basic understanding of industrial robots;
2. Industrial robot teaching device motion operation;
3. Point-to-point teaching of industrial robots;
4. Basic parameter settings for industrial robots;
5. Basic motion instruction learning for industrial robots;
6. Programming of industrial robots based on teaching aids;
7. Industrial robot control applications;
8. Basic wiring methods for industrial robots;
9. Programming and teaching of simple trajectory operation;
10. Programming and teaching of flat circular tracing tasks;
11. Programming and teaching of flat rectangle drawing tasks;
12. Programming and teaching of surface mapping tasks;
13. Fixed position handling programming and teaching;
14. Programming and teaching of glass plate detection and classification arrangement;
15. Programming and teaching of plane position handling assembly;
16. Programming and teaching of inclined plane position handling assembly;
17. Programming and teaching of planar matrix three-dimensional stacking;
18. Programming and teaching of model car window adhesive assembly;
19. The cooperation between industrial robots and gripper fixtures is an application;
20. The combination of industrial robots and suction cup fixtures is an application.
