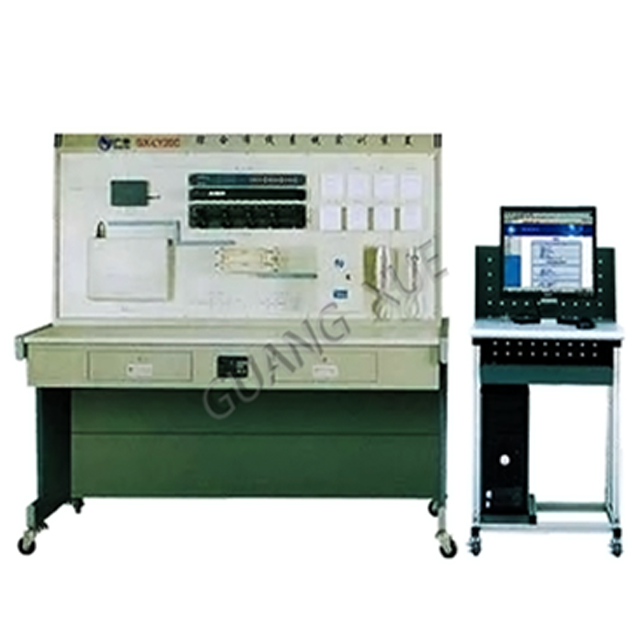

一、Product Overview

This device is suitable for relevant practical training in building electrical appliances and building intelligence majors. The comprehensive wiring system is an important component of the intelligent building communication automation system, which is the information channel for internal and external communication in the building. It is an important link for data and signal exchange and processing. The communication and exchange of information between the internal and external units of the building, including voice information, data information, video information, etc., all need to be achieved through comprehensive wiring and computer network systems. The training content of this device includes two major parts: data network and voice network, and also includes common systems of comprehensive cabling in buildings: workspace subsystem, horizontal cabling subsystem, vertical cabling subsystem, management subsystem, and equipment room subsystem. The equipment is equipped with routing, switches, program-controlled switches, distribution frames, cable management rings, telephone distribution boxes, RJ45 modules, and RJ11 modules. Able to complete practical training projects such as tool usage and basic module installation and production, installation and use of routers and program-controlled switches, conduction testing, tracking and numbering of information points, line fault diagnosis and handling, connection of data network and voice network system lines, and design of data and voice network systems.

二、Technical Parameter

1)Working power supply: three-phase five wire 220V ± 5% 50Hz；

2)Safety protection: leakage protection (operating current ≤ 30mA) overcurrent protection, fuse protection；

3)Boundary dimension: 1500 ×?750× 1560mm；

4)Rated power:<0.5KW；

5)Environmental temperature: -10 ℃~40 ℃；

6)Relative humidity:<85%；

7)Equipment weight: 125Kg。

三、Practical training projects

1.Production and testing of jumpers for RJ45 and RJ11 plugs;

2.Cable clamping and installation of card type modules;

3.Installation of information sockets;

4.Installation and cable clamping of distribution frames and cable management rings;

5.Conduction testing, searching, and numbering of information points;

6.Installation and use of routers;

7.Design and install a data network system;

8.Installation and cable clamping of 110 distribution frame;

9.Installation and use of telephone distribution boxes;

11.Installation and use of program controlled switches;

12.The establishment of a voice network system;

13.Judgment and handling of line faults;

14.The application of data networks;

15.The connection between a local area network and a wide area network.
