一、Product Overview

This display cabinet is designed according to the teaching outline of the textbook compiled by the Ministry of Machinery Industry of China. It mainly explains the geometric relationship of various links in the mechanical processing process system, explains the principle of ensuring machining accuracy with fixtures, introduces the knowledge of the components of fixtures, and explores the development direction of machine fixtures. It provides a preliminary introduction and understanding of universal and adjustable group fixtures, combined fixtures, automated fixtures, etc. The demonstration image is realistic, the production process is beautiful, and using this display cabinet to improve teaching effectiveness is a set of modern mold design course application display room equipment.

二、 Technical parameters

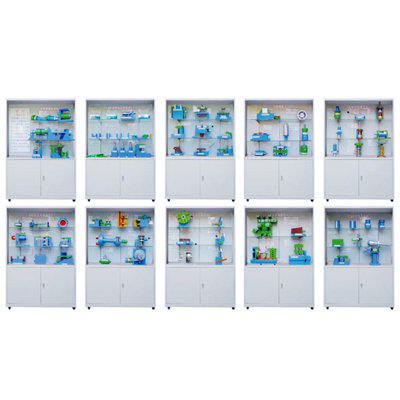

1) The complete display cabinet consists of ten individual display cabinets, with an overall size of 1200 × four hundred × 1850 mm; The scale proportion design meets the requirements of ergonomics;

2) The display cabinet is made of 1.0mm cold-rolled steel plate and sprayed with plastic, with good rigidity and beautiful appearance; The display panel inside the cabinet is a high-density board with good load-bearing capacity; And cooperate with corresponding graphic and textual materials;

3) There is a display cabinet name on the upper part of the cabinet for easy identification;

4) The lower part of the cabinet is equipped with a cabinet for convenient storage of individual models, experimental boxes, and related experimental documents;

5) The bottom of the cabinet is equipped with universal wheels for easy movement;

6) The model material is made of organic glass and engineering plastic.
